Reflective tape is commonly used in photoelectric sensor applications to enhance visibility, detection accuracy, and operational reliability. Here’s a detailed look at how reflective tape applies to these systems:
1. Purpose in Photoelectric Sensors
Photoelectric sensors detect objects by sensing a beam of light reflected back to the sensor. Reflective tape plays a critical role in these setups, especially in the following modes:
a. Retro-Reflective Mode
- In this mode, the sensor emits a light beam toward a target equipped with reflective tape.
- The reflective tape bounces the light directly back to the sensor, completing the detection loop.
- When an object interrupts the beam, the sensor detects the change and triggers an output.
b. Proximity and Diffuse Modes
- Reflective tape can also be used to enhance the detection of objects by increasing the contrast between the background and the reflective surface.
2. Characteristics of Reflective Tape for Photoelectric Applications
Reflective tapes used in photoelectric systems have specific features to optimize performance:
- High Retro-Reflectivity: The tape’s microprismatic or glass-bead surface reflects light efficiently back to its source.
- Durability: It withstands environmental conditions like moisture, UV radiation, and temperature fluctuations.
- Color Variations: Often white or silver for maximum reflectivity, though other colors may be used for specific contrast requirements.
- Adhesive Strength: It adheres well to various surfaces, ensuring stable placement.
3. Advantages
- Increased Range: Retro-reflective tape extends the operational range of photoelectric sensors, as it reflects light more efficiently than non-reflective surfaces.
- Improved Accuracy: It reduces false signals by ensuring a consistent and predictable reflection.
- Versatility: Works on irregular or small surfaces where standard reflectors might not fit.
- Cost-Effective: Offers an affordable alternative to specialized reflectors in certain applications.
4. Common Applications
Reflective tape in photoelectric systems is used in:
- Automated Conveyor Systems: For detecting packages or items.
- Safety Barriers: To sense intrusion or obstruction.
- Industrial Machinery: For position detection or alignment.
- Traffic and Parking Sensors: For vehicle detection and lane guidance.
- Robotics: To aid in navigation and obstacle detection.
5. Installation Tips
- Proper Placement: Align the tape directly with the sensor to ensure the light beam reflects effectively.
- Surface Preparation: Clean and dry the surface before applying the tape to ensure optimal adhesion.
- Environmental Considerations: Choose a tape suited to the environment (e.g., waterproof for outdoor use).
- Regular Maintenance: Inspect periodically for dirt or damage, as these can reduce reflectivity.

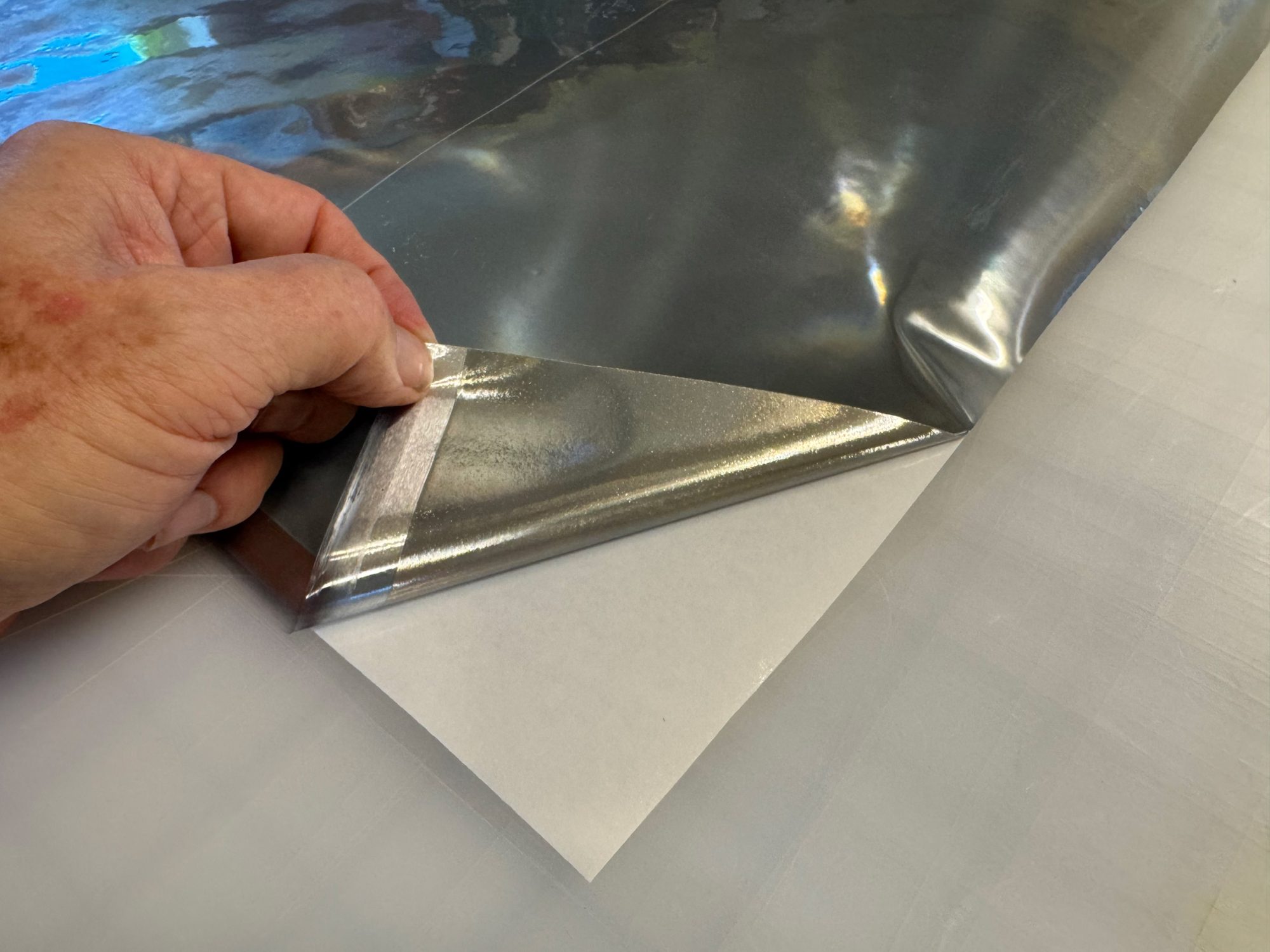

Let me know if you need further specifics, such as recommendations for reflective tape brands or details on how to optimize its use in your system! You can reach us at steve@reflectivestore.com . We carry three photo electric tapes, P82, D96, and AC1000. AC1000 is acrylic based and the brightest of all the photo electric films and of all reflective films for that matter. P82 is a polyester based retro reflective film and has a pattern. D96 is similar to P82 but with no pattern.
